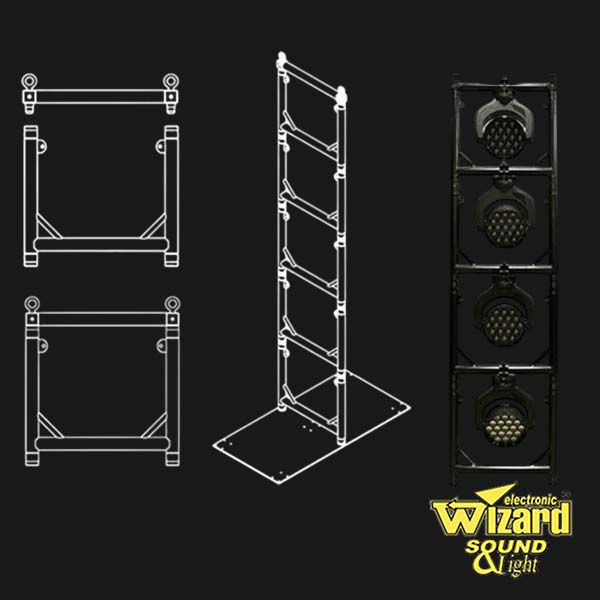

Modularni U frejm

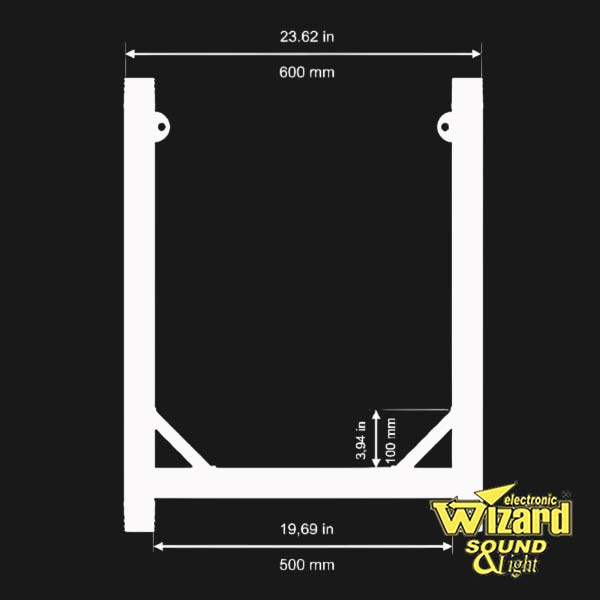

U-Torm 50:

• Dimensions (W x D x H)
• Outer Dimension
  • 23.6″ x 2″ x 29.9″   (60 cm x 5 cm x 76 cm)
• Inner Dimension
  • 19.7″ x 2″ x 25.6″   (50 cm x 5 cm x 65 cm)
• Weight: 8.1 lbs.  (3.7 kg)
• Center point loading: 110 lbs.  (50 kg)
• Maximum hung U-Torm units: 10
• EN AW 6082-T6 aluminum alloy
• Conical connecting element with pin and safety clip (2 included)
• U-Top 50:
  • Dimensions with eyebolt (W x D x H):
    • 23.6″ x 2″ x 4.3″  (60 cm x 5 cm x 11 cm)
  • Weight: 4 lbs.  (2 kg)
  • Center point loading: 110 lbs.  (50 kg)
  • EN AW 6082-T6 aluminum alloy

  Conical connecting element with pin and safety clip (2 half conicals included)

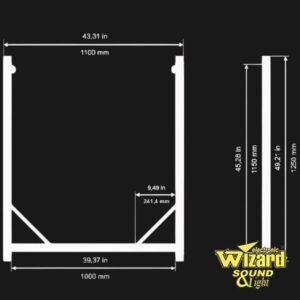

• U-Torm 100:
  • Dimensions (W x D x H)
  • Outer Dimension
    • 43.3″ x 2″ x 49.2″   (110 cm x 5 cm x 125 cm)
  • Inner Dimension
    • 39.4″ x 2″ x 44.9″  (100 cm x 5 cm x 114 cm)
  • Weight: 12.6 lbs.  (5.7 kg)
  • Center point loading: 220 lbs.  (100 kg)
  • Maximum hung U-Torm units: 5
  • EN AW 6082-T6 aluminum alloy

  Conical connecting element with pin and safety clip (2 included

• U-Top 100:
  • Dimensions with eyebolt (W x D x H):
    • 43.3″ x 2″ x 4.3″  (110 cm x 5  cm x 11 cm)
  • Weight: 5 lbs.  (2.3 kg)
  • Center point loading: 220 lbs.  (100 kg)
  • EN AW 6082-T6 aluminum alloy
  • Conical connecting element with pin and safety clip (2 half conicals included)
