OMNITRONIC PM-322 DJ mixer
FEATURES
2-channel DJ mixer
- 2 input channels with gain control, 2-way equalizer and phono/line switching
- DJ microphone input with level control
- Pre-fader listening (CUE) to the stereo input channels via adjustable headphone output, with cue mix control
- Replaceable crossfader for crossfading between both channels
- 6-digit stereo LED level meter and master level control

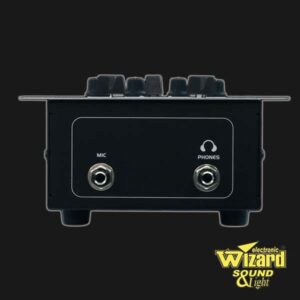

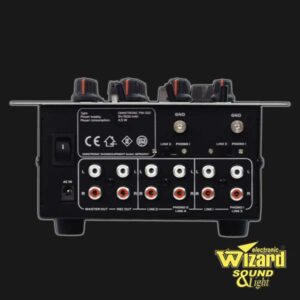

- Inputs: 4 x line and 2 x phono (stereo RCA), DJ microphone and headphones (6.3 mm jack)
- Outputs: master and record (stereo RCA)

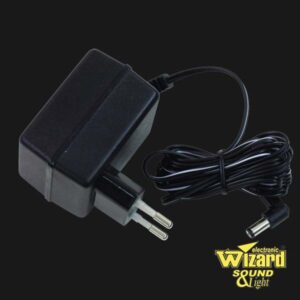

| Power supply: | 110-240 V AC, 50/60 Hz |
| Power consumption: | 30,00 W |
| Frequency range: | 20 - 20000 Hz |
| Power connection: | Mains input C8 "figure 8" mounting version Power supply cord with Euro plug (provided) |
| Width: | 19 cm |
| Height: | 13,7 cm |
| Depth: | 26 cm |
| Weight: | 2 kg |
| Inputs: | |
| DJ microphone: | 6.3 mm jack |
| Minimum input voltage: | 3 mV RMS/ 47 kohms |
| LINE: | stereo RCA |
| Minimum input voltage: | 150 mV RMS/ 47 kohms |
| PHONO: | stereo RCA |
| Minimum input voltage: | 3 mV RMS/ 47 kohms |
| Outputs: | |
| MASTER: | stereo RCA |
| Max. output level: | +19 dBu |
| Output voltage: | 7 V RMS |
| REC: | stereo RCA |
| Output voltage: | 2.4V RMS |
| Headphones output: | 6.3 mm stereo jack (min. 32 ohms) |
| Tone control: | |
| 2 x High: | -24 dB to +15 dB/ 12 kHz |
| 2 x Low: | -24 dB to +15 dB/ 100 Hz |
| S/N ratio: | >70 dB |
| Distortion: | <0.025% |
