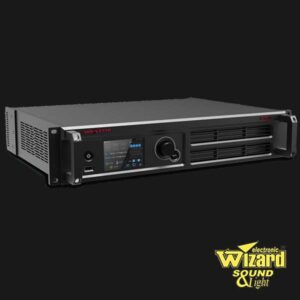

Video procesor MCTRL4K

SKU: 15200557

Category: Video procesori

Tags: LED ekran, upravljanje, video, video procesor

Opis
specifikacije

Opis

Video procesor MCTRL4K

MCTRL4K je LED kontroler ekrana sa ultra-velikim kapacitetom opterećenja do 4096×2160@60Hz.

Podržava bilo koju prilagođenu rezoluciju sa maksimalnom širinom ili visinom do 7680 piksela, ispunjavajući zahteve konfiguracije na licu mesta za ultra dugačke ili ultra široke LED displeje.

1 × DP 1.2 ulaz i 1 × HDMI 2.0 ulaz, rezolucije do 8,8 miliona piksela po ulazu
2 × D-DVI ulaza, ukupne rezolucije do 8,3 miliona piksela.
16 × Neutrik Gigabit Ethernet portova i 4 × 10G optička porta za izlaz.
Podržane prikaze video zapisa: 8-bitni, 10-bitni i 12-bitni.
Podržava i mozaik i režim rada sa više kartica za dual-link DVI ulaze.
Podržava HDR funkciju, kako u HDR10 tako iu HLG standardima.
Podržava individualno podešavanje gama za RGB kada je dubina bita izvora ulaza 10-bitna ili 12-bitna.
Podržava 3D funkciju kada radite sa 3D emiterom EMT200 i 3D naočarima.

Mala latencija: Manje od 1 ms (kada je početna pozicija slike 0.)
Podržava postavke ultra visoke rezolucije sa NVIDIA grafičkom karticom.
Prilagodljiv na ulaze sa frekvencijama decimalnog okvira, uključujući 23,98 / 29,97 / 47,95 / 59,94 / 71,93 / 119,88 Hz
Podržava novu generaciju tehnologije kalibracije nivoa piksela NovaStar.
Podržava konfiguraciju ekrana preko veb interfejsa.
Više MCTRL4K jedinica se može kaskadno povezati za jednoliku kontrolu.
Podržava različite video formate.

specifikacije

Input

DP 1.2

DP 1.2 input, with a maximum resolution of 4096×2160@60Hz and minimum resolution of 640×480@24Hz
Pixel capacity: 8,800,000 pixels
Custom resolutions supported:
Resolution limit with maximum width: 7680×1080@60Hz
Resolution limit with maximum height: 1080×7680@60Hz
Supports HDCP 1.3.
Supported standard resolutions:
1280×1024@(24/25/30/48/50/60/72/75/85/100/120)Hz
1366×768@(24/25/30/48/50/60/72/75/85/100/120)Hz
1440×900@(24/25/30/48/50/60/72/75/85/100/120)Hz
1600×1200@(24/25/30/48/50/60/72/75/85/100/120)Hz
1920×1080@(24/25/30/48/50/60/72/75/85/100/120)Hz
1920×1200@(24/25/30/48/50/60/72/75/85/100/120)Hz
1920×2160@(24/25/30/48/50/60/72/75/85/100/120)Hz
2560×1600@(24/25/30/48/50/60/72/75/85/100/120)Hz
3840×1080@(24/25/30/48/50/60/72/75/85/100/120)Hz
3840×2160@(24/25/30/48/50/60)Hz

HDMI 2.0

HDMI 2.0 input, with a maximum resolution of 4096×2160@60Hz and minimum resolution of 800×600@30Hz
Pixel capacity: 8,800,000 pixels
Custom resolutions supported:
Resolution limit with maximum width: 7680×1080@60Hz
Resolution limit with maximum height: 1080×7680@60Hz
Supports HDCP 1.4 and HDCP 2.2.
Supported standard resolutions:
1280×1024@(24/25/30/48/50/60/72/75/85/100/120)Hz
1440×900@(24/25/30/48/50/60/72/75/85/100/120)Hz
1600×1200@(24/25/30/48/50/60/72/75/85/100/120)Hz
1920×1080@(24/25/30/48/50/60/72/75/85/100/120)Hz
1920×1200@(24/25/30/48/50/60/72/75/85/100/120)Hz
1920×2160@(24/25/30/48/50/60/72/75/85/100/120)Hz
2048×1536@(24/25/30/48/50/60/72/75/85/100/120)Hz
2560×1600@(24/25/30/48/50/60/72/75/85/100/120)Hz
3840×1080@(24/25/30/48/50/60/72/75/85/100/120)Hz
3840×2160@(24/25/30/48/50/60)Hz

DUAL DVI-D1 DUAL DVI-D2

2 × DVI inputs, each with a maximum resolution of 3840×1080@60Hz and minimum resolution of 800×600@30Hz
Pixel capacity: 8,300,000 pixels
Custom resolutions supported:

Resolution limit with maximum width: 3840×2160@60Hz Resolution limit with maximum height: 2160×3840@60Hz

Supported standard resolutions: 1280×1024@(24/25/30/48/50/60/72/75/85/100/120)Hz 1366×768@(24/25/30/48/50/60/72/75/85/100/120)Hz 1440×900@(24/25/30/48/50/60/72/75/85/100/120)Hz 1600×1200@(24/25/30/48/50/60/72/75/85/100/120)Hz 1920×1080@(24/25/30/48/50/60/72/75/85/100/120)Hz 1920×1200@(24/25/30/48/50/60/72/75/85/100)Hz 1920×2160@(24/25/30/48/50/60)Hz 2560×1600@(24/25/30/48/50/60)Hz 3840×1080@(24/25/30/48/50/60)Hz 3840×2160@(24/25/30)Hz

Output

1–16

16 Neutrik (NE8FBH) Gigabit Ethernet ports
Maximum loading capacity of a single Ethernet port:
For 8-bit input sources: 650,000 pixels
For 10-bit/12-bit input sources: 320,000 pixels
Do not support audio output.
Support redundancy between Ethernet ports.

OPT1–OPT4

10G optical ports
Single-mode twin-core fiber: Support LC optical connectors; wavelength: 1310 nm; transmission distance: 10 km; OS1/OS2 recommended.
Dual-mode twin-core fiber: Support LC optical connectors; wavelength: 850 nm; transmission distance: 300 m; OM3/OM4 recommended.
The maximum loading capacity of a single optical port equals to that of all the 8 Ethernet ports.
4 OPT inputs/outputs
OPT1 and OPT2 are main input/output ports. OPT1 corresponds to Ethernet ports 1–8 and OPT2 corresponds to Ethernet ports 9– 16.
OPT3 and OPT4 are backup input/output ports. OPT3 is a duplicate channel of OPT1, and OPT4 is a duplicate channel of OPT2.

Control:ETHERNET For PC connection

USB IN:Input port for cascading devices, or connecting to PC

USB OUT:Output port for cascading devices

GENLOCK

IN: Genlock input connector
Genlock type: Blackburst
Input Genlock sync signal to ensure synchronization and same refresh rate between the output signals of cascaded MCTRL4K units and the external Genlock signal.

LOOP: Genlock loop output connector
Up to 10 MCTRL4K units can be cascaded.

Power:
AC 100 V–240 V, 50/60Hz:AC power input
