P-Audio X-15A, aktivna plastična zvučna kutija

Description



The P Audio X-Class series of portable and fixed install loudspeaker systems represent a unique combination of high performance and portability. The X-15A is a powered two way sound reinforcement system designed for both live music and full range fixed installations. The X-15A contains a bi-amplified power amplifier system featuring a full 300 watts of program power. The X-15A utilizes a 15 inch low frequency loudspeaker and an advanced flare high frequency horn. The rated coverage pattern of 90 degrees in the horizontal plane and 40 degrees in the vertical plane make the system ideal for wide coverage applications such as live performance reinforcement, mobile DJ systems, dance clubs and conference reinforcement systems. The advanced flare horn is mated with a medium format professional compression driver that features high energy neodymium magnetics. The compression driver also features a commercially pure titanium diaphragm and edge wound aluminum voice coil to minimize moving mass and generate extended bandwidth. The P Audio X-15A was designed using a fully discrete Bi-Polar split rail high efficiency amplifier design and active filter system. The amplifier section produces a full 200 watts of low frequency program power and 100 watts of high frequency program power. The input section of the amplifier module features both line level and microphone level inputs and separate volume controls for each input, allowing mixing functions for the two inputs. The X-15A offers world class efficiency for high sound pressure level applications. The one watt, measured at one meter, output is 98dB, making the X-15A a true world class sound reinforcement system. Maximum output capability is over 120dB SPL. The system offers a rated bandwidth of 50Hz to beyond 20kHz. The X-15A features a high impact injection molded enclosure with an integral 35mm stand mount adaptor and four recessed M10 mounting point for permanent installation applications. The system is a light weight design (42.9lbs, 19.5kg) and integral handles for easy transportation. The powder coated metal grill and high impact polycarbonate enclosure insures the X-15A can provide high output acoustic response, even in harsh physical environments. The X-15A offers very linear frequency response and excellent fidelity for a wide range of professional applications.

  • Neodimijumski visokotonski drajver 1,4 inča (35mm) sa titanijumskom membranom
  • Neodimijumski mid-bas 15 inca (380mm) sa neodimijumskim magnetom
  • Mikrofonski i linijski ulaz sa nezavisnom kontrolom glasnoće

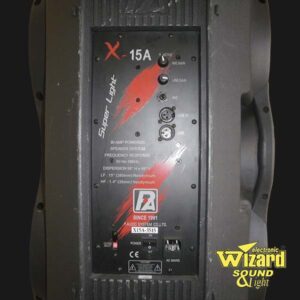

  • Aktivna verzija sa 2 odvojena pojačala bas/visoki
  •  Dvosistemska kutija za žive svirke ili fiksne instalacije
  • Otvor za stalak prečnika 38mm
  • Težina ukupno: 20,6kg
  • Dimenzije: 766mm x 485mm x 354mm
  • Kućište od kvalitetnog i otpornog polikarbonata

PDF ikona katalog sa podacima
