PreNeo-740N, neodimijumski drajver 1.4 inča

PreNeo-740N, neodimijumski drajver 1.4 inča

Profesionalni drajver, neodimijumski magnet, titanijumska membrana, zavojnica 3 inča (76mm), priključak na hornu 1.4 inča (35mm), 112dB/W/1m… (isti kao PreNeo-750N jedino za manje horne !!!)

Description

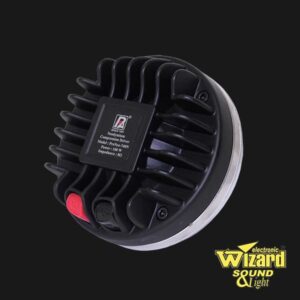

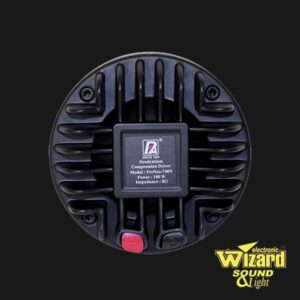

The P Audio PreNeo-740N is a state of the art high output compression driver. Advanced engineering and manufacturing methods have produced an extremely reliable and wide bandwidth device that also features very high fidelity. The PreNeo-740N is a large format titanium based diaphragm assembly mated to a close spaced circumferential phase plug geometry. The voice coil is a rectangular geometry high temperature aluminum to insure extended high frequency response. The large 1.4 inch (35.5mm) throat exit makes the 740N an excellent choice for extended bandwidth and high sound pressure level performance. This medium format throat insures low distortion and high intelligibility and is an industry standard for professional audio applications. This throat diameter has become an industry reference when combined low distortion and extended bandwidth are required. The 1.4 inch diameter throat insures wide dispersion at high frequencies. The 1.4 inch throat is compatible with a variety of P Audio horns and also compatible with industry standard 1.4 inch bolt on horns. The Neodymium based permanent magnetic system produces a very high efficiency to weight and size ratio. This makes the PreNeo-740N ideal for high level professional touring applications as well as high level fixed installation systems. The large Neodymium-Iron-Boron permanent magnet produces a remarkably high conversion efficiency.

  • Throat Diameter 1.4 inch (35.5mm)
  • Diaphragm Diameter 3.0 inch (76mm)
  • Nominal Impedance 8 Ohm
  • Voice Coil DC Resistance 6.2 Ohm
  • Power Handling 100 Watt
  • Sound Pressure Level (1W@1M) (Loaded with 90×40 Horn) 112 dB
  • Mounting Type Bolt On
  • Magnet Neodymium
  • Diaphragm Material Titanium
  • Recommended Crossover 1kHz or higher (12dB/Oct slope)
  • Net Weight 3.1kg (6.8lbs) 1pc
  • Gross Weight 3.3kg (7.3lbs) 1pc
  • Packing Dimension HxWxD(cm) 18.7 x 18.7 x 11.7 (0.15 Cu.Ft.)
