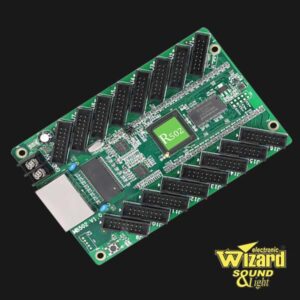

Huidu R502 LED Display Cascading Receiving Card 256x256 Mainly parameter：
Working ways:Used in Sending card HD-A601/602/603 Series, HD-C10/C30series,HD-A30/A30+ Series
Suitable Modules types: Indoor & outdoor full-color & single/dual color module
Support MBI5041/5042、MBI5050、MY9221、MY9268 etc PWM
Scan mode:Static, 1-32 scan randomly
Communication:Gigabit Network 1pcs of receiving card support areas
Outdoor: 256W*256H Indoor: 512W*128H
The highest height is 512H.The longest width 512W
Receiving cards sequence: Sequence randomly, and it can recognize the sequence by software or set up sequence by hand.
Receiving card connected speed by nanoseconds
Gray scale: 0-65536
Smart set: Smart set by few simple steps, through display routine setting ,it could suit almost different PCB routine
Play contents: Play video、animation、picture、text、excel、PPT、time、counter etc
Test functions: It have self test button, could test modes of red、green、blue、white、gray、oblique line、grid、spots etc
Blanking Circuit: Support
Communication distance: 150m use CAT5E OR CAT6 Cable (From Sending card to Receiving card)

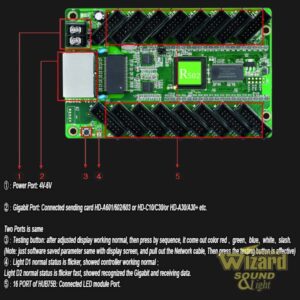

Port: 2pin 5V Power x1,Gigabit portX2，75B HUB portx16
Voltage: 4V-6V
Working temperature: 40℃--85℃
