Product name:

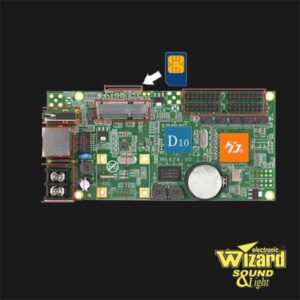

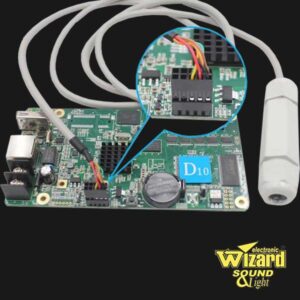

HD-D10 High performance strip video screen controller card

three models;
D10(384*64 HUB75)
D20(384*64 HUB08)

Door lintel full color, taxi roof, bus advertising screen dedicated controller;
Use A8 CPU to archive the best video effect;
Unique video capture function, video without anamorphose;
Store content more than 2 hours.

Do the best effect of strip full color display controller
Focus on video, animation, compared to the traditional text control cards,the effect is even more dazzling
It is unique strip screen control card in the industry to use A8 CPU+FPGA architectures , much stronger than the single MCU program performance
Compared with “fake dual-mode card” which apply the synchronous receiving card to do memory recording ,our D10 / D20 / D30 has a separate processor, memory longer, and support import program by U disk
Unique video capture function, video without anamorphose

1:Support indoor & outdoor full-color & single/dual color module.
2.Control range Pixel:384W*64H
3.Support 256 Gray scale.
4.Support Video、Animation、Image、Neon 、 Office file etc .
5.Support U-disk expanding memory, plug and play.
6.Plug and play without any network settings.
7.Support Internet /3G/4G Clouds management


There are no reviews yet.

Be the first to review “HD-D10”

Your email address will not be published. Required fields are marked

TypeIndoor & outdoor full-color & single/dual color module
Control RangePixel: 384(W)*64(H) . longest 512 highest 128
Gray level256
Animation formatSWF、FLV 、GIF
Picture formatBMP, GIF, JPG, JPEG, PNG, GIF, etc.
TextText and Image being edited directly.
TimeClassic Analog clock, digital clock and various of clock with image background
Other functionNeon, animations function; Clockwise/counter-clockwise count; support temperature and humidity; Adaptive brightness adjustment function
Memory capacity256MB Flash, more than 2 hours’ program support. Indefinite expanding of U-disk memory.
Communication typeU-disk; Via NetworkRJ45 port connected LAN,Internet or 3G/4G to Internet
Port5V Power x1, 10/100M RJ45 x1, USB 2.0 x1, 4Port of HUB75
