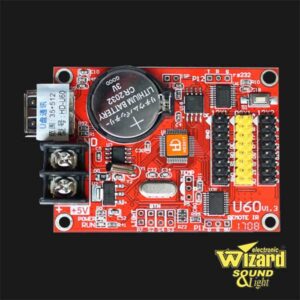

KARTICA ZA LED DISPLEJ HD-U60

The new functions:
1.Read cards automatically(includes serial card and the LAN card)
2.99%usb flash disk compatibility.
3.Support animated letter,hollow letter,font stroke.
4.CPU(context M4) run fater and hold high refresh rate.
5.Add more styles in Dial.
6.Change font size randomly in Temperature ,time,counter.
7.Add control card with bigger resolution.
8 Border is composed from 1pixel to 8pixels in any area,support custom frame.

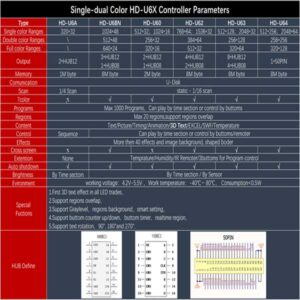

Specification of HD-U60 Control Card

Application Range: This product applies to information displays for all the signs, stores, vehicles, outdoor ads, etc..

Advantages: Wireless transmission for U-Disk, cost-effective, simple software interface, easy to operate, rich and fine display effects; above all, more than 98% single color and double-color screens are supported.

Application Software: the fourth-generation operating software HD2016 for LED screen.





1.Product type Led display controller asynchronously

2.Single color 32H*384W
Dual color 32H*192W

3.Storage 2M

4.Interface 1of Hub08,2of Hub12;

5.Scan mode supporting general modules,1/16,1/8,1/4,1 /2 and static scan, etc

6.Communication type through USB port of Flash memory to update program

7.Software HD2016

8.Programs quantity 200 pcs

9.Time effects supporting Perpetual calendar and virtual-clock effects

10.Districts divided into 4 districts discretionarily

11.Clear display types: supporting 30 types of clean display effects ,and also select clean type randomly
supporting morn than 50 display showing effects

12.Magic boarder 200 types of boarder effects(classic + magic boarder)

13.Luminance adjustment supporting 50 levels of luminance adjustment
supporting Luminance adjustment by time
supporting setting autumatic (you will add luminance sensor by yourself)

14.Time switch defined time setting to turn on or turn off

15.Picture it support gif jpg jpeg png bmp ; support txt rtf hf file ;also support animation

16.Voltage 4.2-5.5V

17.working temperature -40℃ +75℃
