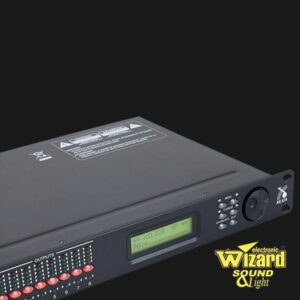

Return To ShopXP-8080 je 8 in 8 out profesionalni matrix DSP sistem kontroler. 24 bit AD/DA konverzija i 40 bit floating point DSP na 96kHz sampling rate garantuje visoki audio kvalitet. Oba ulaza nude 650ms delay/kašnjenje, 31-band grafički i 8 parametrički EQ’s, kompletni filter sekciju (maks. 48dB) i kompresor…
XP-8080 je 8 in 8 out profesionalni matrix DSP sistem kontroler. 24 bit AD/DA konverzija i 40 bit floating point DSP na 96kHz sampling rate garantuje visoki audio kvalitet. Svih 8 ulaza nude 650ms delay/kašnjenje, 31-band grafički i 8 parametrički EQ’s, kompletni filter sekciju (maks. 48dB) i kompresor. Svih 8 izlaza nude 650ms delay/kašnjenje, 8-band parametarski EQ, kompletnu filter sekciju (maks. 48dB) i true RMS limiter. XP-2040 radi samostalno, kompletna kontrola se postiže korišćenjem isporučene XConsole GUI za Windows XP i Vista. Povezuje se preko RS232, USB i Ethernet/Mreža. To čini XP-8080 bežično spremnim i može se koristiti Ethernet mreža sa maks. 16 uređaja i daljinskim kontrol XPanel’s.
Impedance
Input Impedance: >10k Ohms
Output Impedance: 50 Ohms
Maximum Level: +20dBu
Type: Electronically balanced
Audio Performance
Freq Response: +/- 0.1dB (20 to 30kHz)
Dynamic Range: 115 dB typ (unweighted)
CMMR: >100dB (50 to 10kHz)
Crosstalk: < -100dB
Distortion: 0.002% (1kHz @ +4dBu)
Digital Audio Performance
Processor (DSP): 40-Bit Floating Point
Sampling Rate: 96kHz
Analog Converters: Super Performance 24-bit
Propogation Delay: 1.5ms
Audio Control Parameters
Gain: -40 to +15dB in 0.25 dB steps
Polarity: +/-
Delay: Up to 650 ms per I/O
Equalisation
Variable Equalizers: 8 per I/O
Type: Parametric, Hi-shelf, Lo-self,
Phase (1st and 2nd order)
Gain: -30 to +15dB in 0.25dB steps
Bandwith: 0.02 to 2.50 Oct (Q=0.5 to 72)
Graphic EQ: 1 per Input, 31 Band 1/3 Oct
steps
Crossover
2 Individual filters per I/O
Type: Butterworth, Linkwitz Riley, Bessel
Slopes: 6 to 48dB per Octave
Compressors and Limiters
1 Compressor per input channel
1 Limiter per output channel
Threshold: -20 to +20dBu
Attack: 0.3 to 100ms
Release: 2 to 32x the attack time
Ratio: 1:1 to 1:40 (Compressor Only)
System Parameters
No. Of Programs: 30
Delay Units: ms, ft, m
Frequency Modes: 36 steps/Oct, 1Hz Resolution
Security locks: Password
Channel names: 6 Characters
Front Panel Controls
Display: 2×16 Characters Backlit LCD
Level meters: 5 Segment LEDs
Buttons: 16 Mute/Channel Controls
6 System Menu Controls
1 Dial Encoder
Connectors
Analog: Euro/Phoenix Connector
RS-232: Female DB-9
USB: Type B
Ethernet: Standard CAT-5 (Wireless Ready)
Power: Standard IEC Socket
General
Power: 90-265 VAC (50/60Hz) – 20VA
Dimensions: 19”x1.75”x9” (483x44x229mm)
Weight: 10 lbs / 4.6 Kg
Note: specifications subject to change without notice
Input impedance | >10k Ohms |
Output impedance | 50 Ohms |
Maximum level | +20dBu |
Mic/Line | Mic (+40dB Fixed gain)/Line (0dB) |
Type | Electronically balanced |
Frequency response | +/- 0.1dB (20 to 30kHz) |
Dynamic range | 115dB typ (unweighted) |
CMRR | >60dB @ 1kHz |
Crosstalk | <-80dB @ 1kHz |
Distortion | 0.002% (1kHz @ +4dBu) |
Processor | 40-bit Floating Point |
Sampling rate | 96kHz |
Analog converters | High-performance 24-bit |
Propagation delay | 1.5ms |
Connectors | Phoenix Plug-in 3.5mm, XLR, USB, RS232, RJ45 Ethernet, IEC power socket |
Power | 90-240 VAC (50-60Hz) |
Dimensions | 19”x1.75”x9” (483x44x229mm) |
Rack mount | 1RU, with vent between units |
Weight | 11lbs / 5kg |
Warranty | 2 years, parts and labor |
