With sending card: Dual-mode sending box, Asynchronous sending card,Synchronous sending card, Video processor of VP series.
Module type: Compatible with all common IC module, supported most PWM IC module.
Scan mode: Supports any scanning method from static to 1/128 scan
Communication method: Gigabit Ethernet
Control range: Maximum loading capacity: 131,072 pixels (256*512)
Recommended loading capacity: conventional chip 128*768 pixels, PWM chip 256*512pixels
Note: The actual loading capacity is related to the number of HUB ports/module resolution.
Multi-card connection: Receiving card can be put in any sequence
Gray scale: 256~65536
Smart setting: A few simple steps to complete the smart settings, through the screen layout can be set to go with any alignment of the screen unit board
Test functions: Receiving card integrated screen test function, Test display brightness uniformity and display module flatness.
Communication distance: Super Cat5, Cat6 network cable within 80 meters

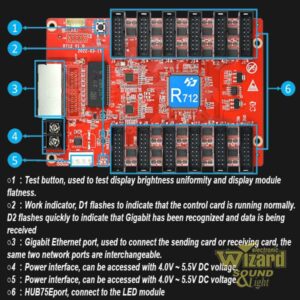

Port: DC 5V Power*2, Gbps Ethernet port*2, HUB75E*12
Input voltage: 4.0V-5.5V
Power: 5W
+381 22 430 520
+381 64 82-98-700
office@wizard.rs
HD-R712 prijemna kartica
HD-R712 prijemna kartica za LED ekrane
R712 je prijemna kartica za LED ekran koja podržava i sinhroni i asinhroni sistem upravljanja, nije potrebna HUB adapterska ploča.
Opremljena je sa 12*HUB75E interfejsom na ploči, sa dobrom stabilnošću, maksimalni kapacitet učitavanja je 131,072 piksela.
1. Integrated with 12 lines HUB75E port
2. Ultra loading capacity, conventional chip recommended 128*768 pixels, PWM chip recommended 256*512 pixels
3. Support data group exchange and data group offset setting
4. Support any scan module within static~1/128 scan
5. Support multi-card cascade, arbitrary order
6. Support data group exchange and data group offset setting
