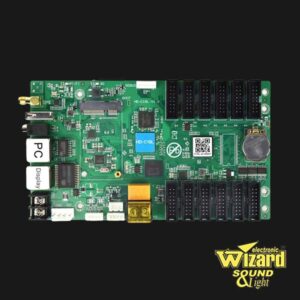

Power input terminal: DC 5V（4.6V~5.5V） 3A
Output network port: Gigabit output network port, cascaded with HD-R series receiving cards
Input network port: 100M input network port communication, connect to computer to debug
and publish programs, used to access LAN or Internet
Audio output: TRS 3.5mm standard two-channel audio output port
USB: Used to update programs or expand capacity
Wi-Fi antenna: Connect Wi-Fi antenna to enhance wireless signa
Temperature sensor dedicated interface: Connect a temperature sensor to monitor the surrounding environment
temperature in real time
Sensor interface: External temperature, humidity, brightness, wind speed, wind direction,
noise, PM2.5, PM10, CO₂and other sensors
GPS interface: Connect to GPS module for positioning and time adjustment
Relay: Relay on/off, supports maximum load: AC 250V~3A or DC 30V-3A
HUB75E interface: Connect HUB75 (B/D/E) interface module
System indicator light:PWR: Power indicator light, green light is always on, power input is
normal
RUN: System running light. If the green light flashes, the system is
running normally; if the green light is always on or off, the system is
running abnormally.
Sensor indicator light:When detecting that no sensor is connected, the light does not light up
When detecting that a sensor is connected, the green light is always on
GPS indicator light: When detecting that there is no GPS signal, the light does not light up;
When the GPS star search number < 4, the green light flashes;
When the GPS star search number >= 4, the green light is always on.
Display indicator light:If the green light flashes, the FPGA system is running normally; if the
green light is on or off, the system is running abnormally
Wi-Fi indicator light
PCIE-4G socket
4G communication indicator light
SIM card holder
Electrical parameters: Input power: DC 5V（4.6V~5.5V）
Maximum power consumption: 8W
Hardware performance: 1.5GHz, Quad-core CPU, Mali-G31GPU
Support 1080p@60fps hard decoding playback
Support 1080p@30fps hardware encoding
Storage Space: Internal storage: 4GB (2G available)
Storage environment: Temperature: -40℃～80℃
Humidity: 0%RH～80%RH (No condensation)
Working environment: Temperature: -40℃～70℃
Humidity: 0%RH～80%RH (No condensation)
Packaging information: 1×C16L
1×WiFi Antenna
1× Certificate of qualification
Note: 4G/5G antennas are optional with 4G module 1PCS

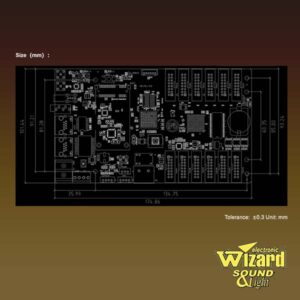

Size: 174.9mm×101.4mm
Net weight: 0.14kg
