DVI Video Input: 1
Interface form: DVI-I socket
Signal standard: DVI1.4,HDMI1.4 backward compatible
Resolution: VESA standard, PC to 1920x1080, HD to 1080
HDMI Video Input: 2
Interface form: HDMI-A
Signal standard:HDMI1.4 backward compatible
Resolution: VESA standard,≤1920×1200@60Hz
SDI Video Input: 1
Interface form: BNC
Signal standard:SD-SDI,HD-SDI,3G-SDI
Resolution: VESA standard,≤1920x1080@60Hz
USB Input: 1
(U disk playback) optional
Wi-Fi 1: 1
(Mobile phone/tablet wireless screen projection) optional
AUDIO IN Audio input x1，3.5mm audio port
AUDIO OUT Audio output x1，3.5mm audio port

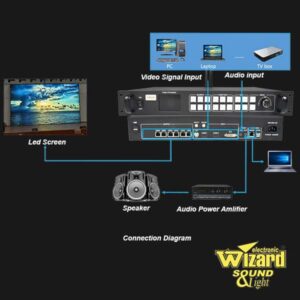

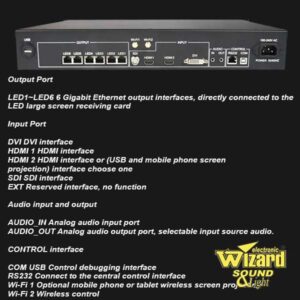

Network port output:
6-way network port output interface，connected to the receiving card，
total pixels 3.9 million，Widest 8192 dots, Highest 4096 dots.
Each network port carries 65W pixels, the maximum width of a single
network port is 2048 points, and the maximum point is 2048 points.
RS232: It is used to connect to the integrated control host (ie central control).
Square USBport(Type B): Connect to PC, through HDSet software for sending card, receiving card parameter debugging, program upgrade, etc.
Wi-Fi 2:Support mobile APP for sending card, receiving card parameter debugging, program upgrade, etc.
Power interface: 100-240V~50/60Hz
Whole machine power: <=75W
Weight: <=3.6kg

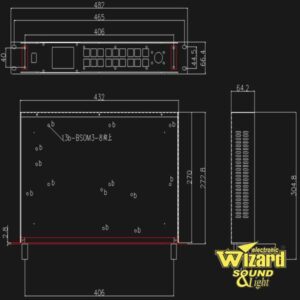

Size（mm） Case size：（Length）482mm*（width）304.8mm*（hight）66.4mm
Machine case: 1.5U standard industrial chassis
